Cambium access points, supplied and installed

DW WiFi is a reseller partner of Cambium Networks and a registered Cambium supplier and installer in the UK. We can offer Cambium's full range of cloud-managed Wi-Fi access points, with no licensing costs.

Enquire about Cambium Compare the four

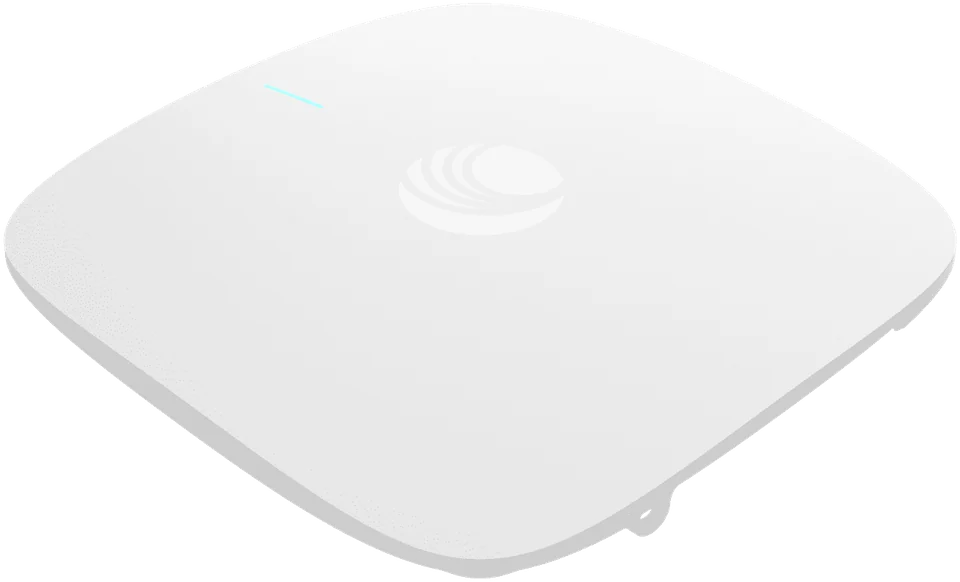

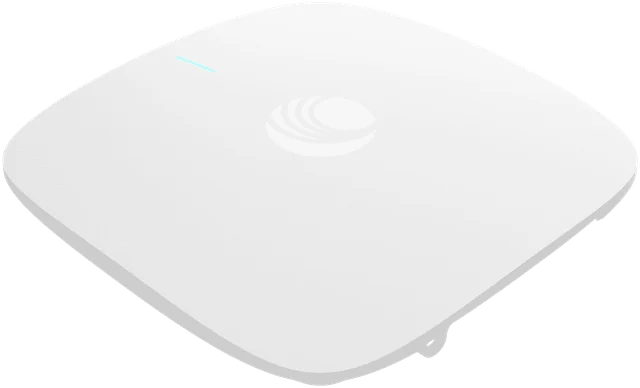

Cambium Networks XE3-4 Wi-Fi 6E indoor access point, from the manufacturer's product render.

XE3-4 Wi-Fi 6E · indoor · tri-radio · 2.4 / 5 / 6 GHz XE3-4 details

Cambium Networks (opens in a new tab) Authorised reseller partner

Four models we recommend for manufacturing

They optimise Wi-Fi reception across the factory and warehouses, and give the offices future-proofed Wi-Fi. Each one is an enterprise grade, software-defined access point.

All four are cloud managed, with no licensing costs. Compare them side by side

Cloud managed, with no licensing costs

Cambium access points are managed through cnMaestro, Cambium's web-based cloud management portal, and Cambium offers cnMaestro for free. There are no licensing costs on the access points we supply.

“The philosophy of ‘something for nothing’ rarely rings true in life so this naturally rang alarm bells with me when I discovered this. I have been using cnMaestro for the last few months … and, so far, I am very impressed.”

Dave Woodall, DW WiFi, on his own XE3-4 deployment
Read Dave's XE3-4 deployment
cnMaestro · Cloud account: DW WiFi

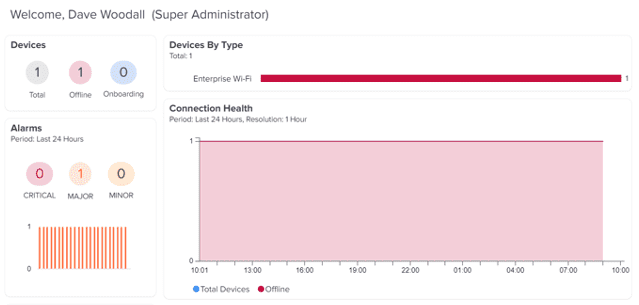

Screenshot from DW WiFi's cnMaestro account: 'Welcome, Dave Woodall (Super Administrator)', with panels for devices, alarms, devices by type and connection health.
Dave's own cnMaestro home page, which gives an instant status of the Wi-Fi network.
cnMaestro · Devices · APs

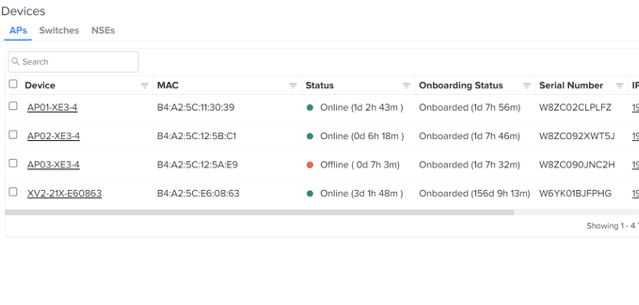

Screenshot of the cnMaestro devices list in DW WiFi's account: AP01-XE3-4, AP02-XE3-4 and XV2-21X online, AP03-XE3-4 offline.
Onboarded to Dave's account: three new XE3-4s and an XV2-21X. AP03 shows offline because it was unplugged while being installed.

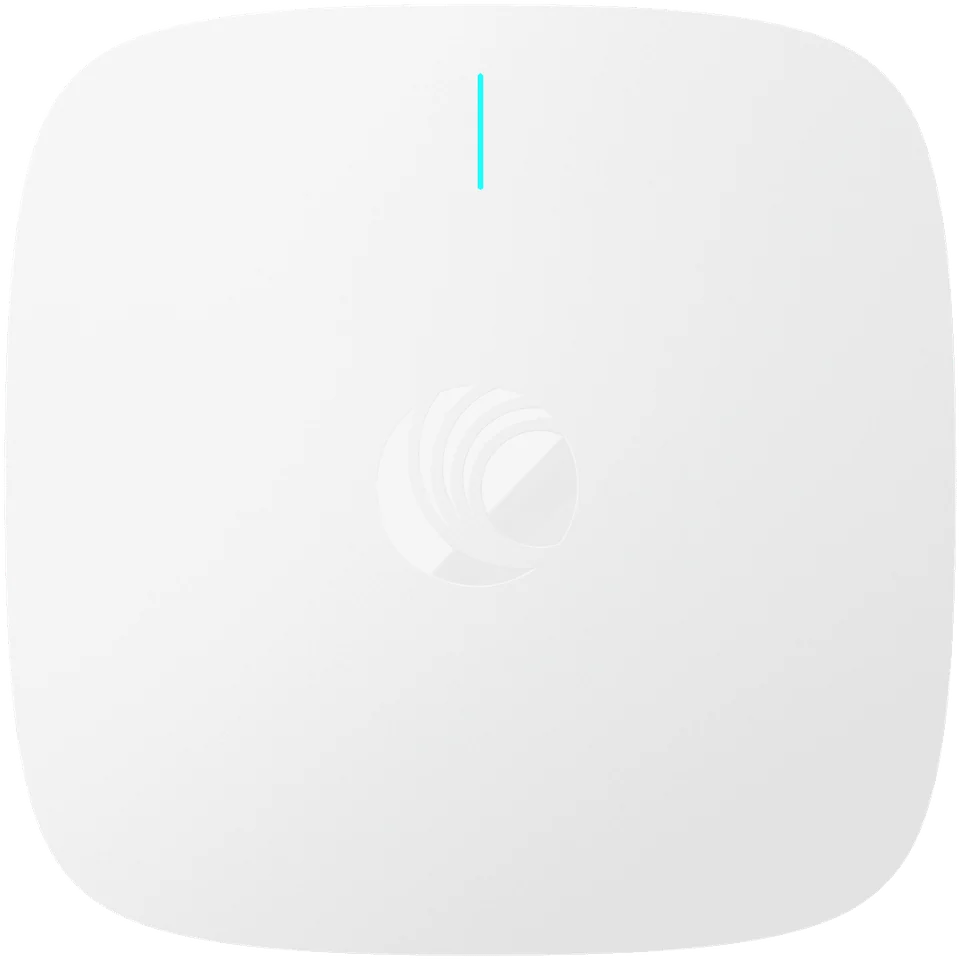

Cambium XE3-4 access point seen from directly above, with its cyan status light.
Wi-Fi 6EIndoorTri-radio

XE3-4 Wi-Fi 6E access point

A tri-radio Wi-Fi 6/6E 4x4/2x2 access point, designed to deliver future-proof performance and value for building next generation networks.

  • Wi-Fi 6Faster and more efficient than earlier Wi-Fi
  • 6 GHzAdded by 6E: more than triples the spectrum
  • 3 radiosHigh speed and software-defined
  • 4x4/2x2Streams

The software-defined radio lets it change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) mode once enough 6 GHz clients are available: a seamless move to Wi-Fi 6E.

Enquire about the XE3-4 Dave's XE3-4 deployment
Radio modes and full specs

Radio mode

  1. Radio 12.4 GHz
  2. Radio 25 GHz
  3. Radio 35 GHz6 GHz

Dual-band: the 2.4 GHz radio plus two 5 GHz radios, which is how Cambium recommend running the XE3-4 for extra capacity.Tri-band: once enough 6 GHz devices are connecting, cnMaestro flags it and one radio can be switched to the 6 GHz band.

Standard
Wi-Fi 6/6E
Radios
Tri-radio, software-defined
Streams
4x4/2x2
Bands
2.4 / 5 / 6 GHz
Antennas
Integrated omni-directional
Management
cnMaestro cloud, or on premises
Wi-Fi 6IndoorDual-radio

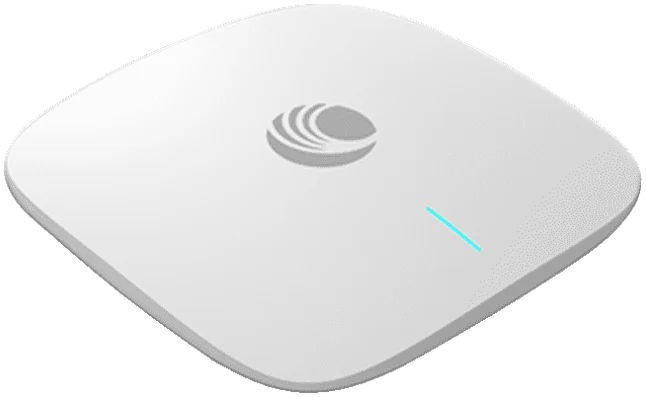

XV2-2X Wi-Fi 6 indoor access point

A dual-radio Wi-Fi 6 access point, designed to deliver next generation networks with edge services at a value-based price.

  • Higher network speeds and more connected devices, at higher packet quality.
  • Fully backward compatible with existing Wi-Fi technology.
  • Room for a massive growth in low power, low bitrate IoT devices that add intelligence to your infrastructure.

Limited Lifetime Warranty. Return and repair service on the access point from the date of purchase until the end of life of the product.

Enquire about the XV2-2X

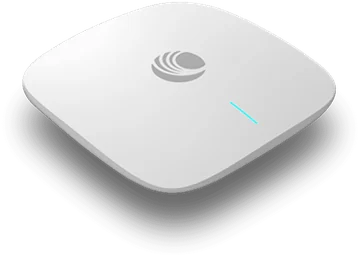

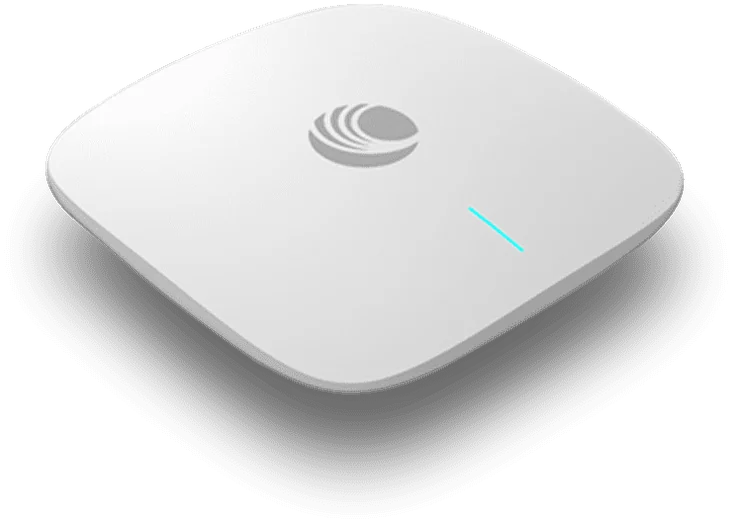

Cambium XV2-2X access point seen from above at an angle, casting a soft shadow.

The access point sets the rhythm

Wi-Fi 6 brings a deterministic model to the radio frequency (RF) layer: the access point controls the client connections, including when to sleep, when to wake, and how to transmit and receive packets. An illustration of the idea, not a measurement.

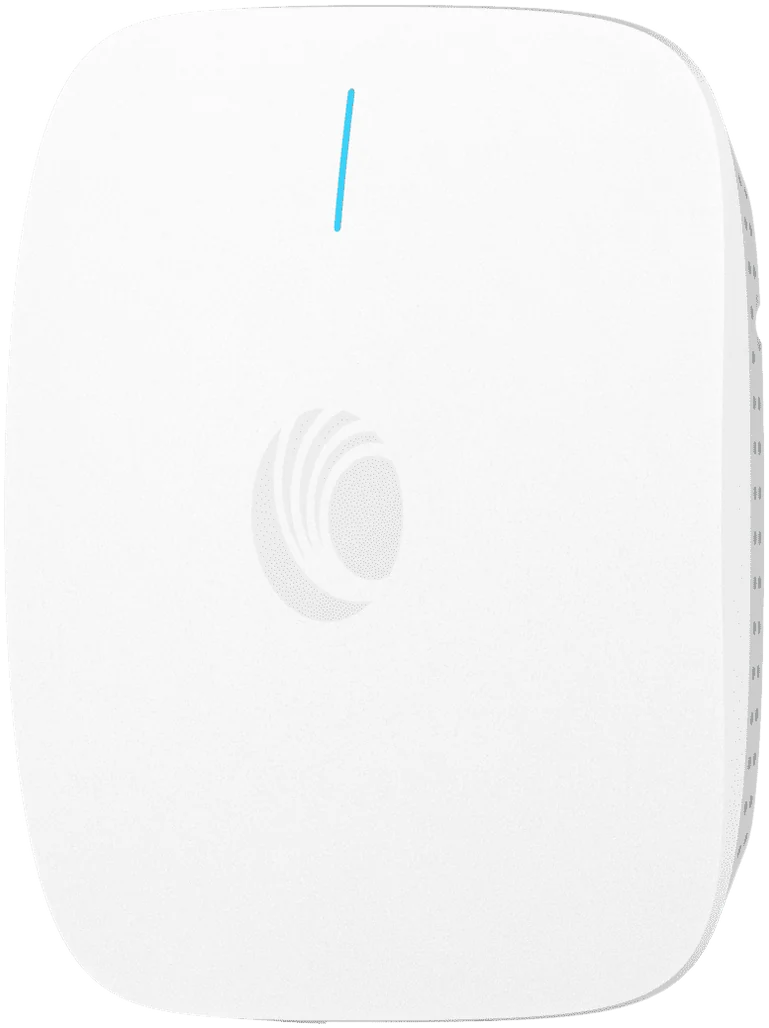

Cambium XV2-21X access point seen face on at an angle, with the embossed Cambium swirl.
Face on

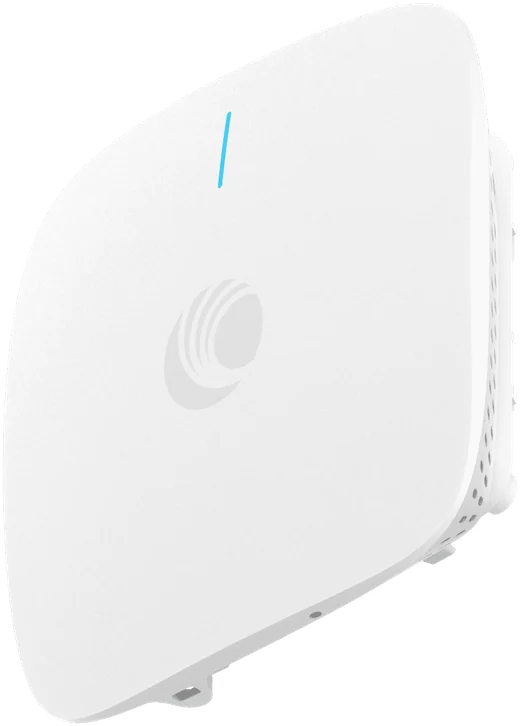

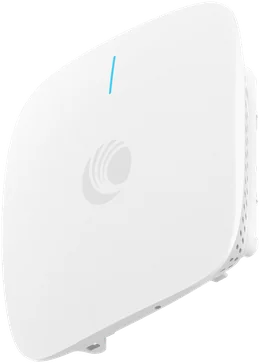

Cambium XV2-21X from a lower angle, showing the mounting bracket on its back edge.
With its mounting bracket
Wi-Fi 6Indoor802.11ax

XV2-21X Wi-Fi 6 indoor access point

Cambium Networks' 802.11ax dual-radio indoor access point, with a high performance to price ratio that is attractive to any market.

  • Dual radio Wi-Fi 6
  • 5 GHz (2x2), 2.4 GHz (2x2)
  • 1 GbE RJ45 interface
  • Managed by cnMaestro and/or Swift
  • Limited lifetime warranty
Enquire about the XV2-21X

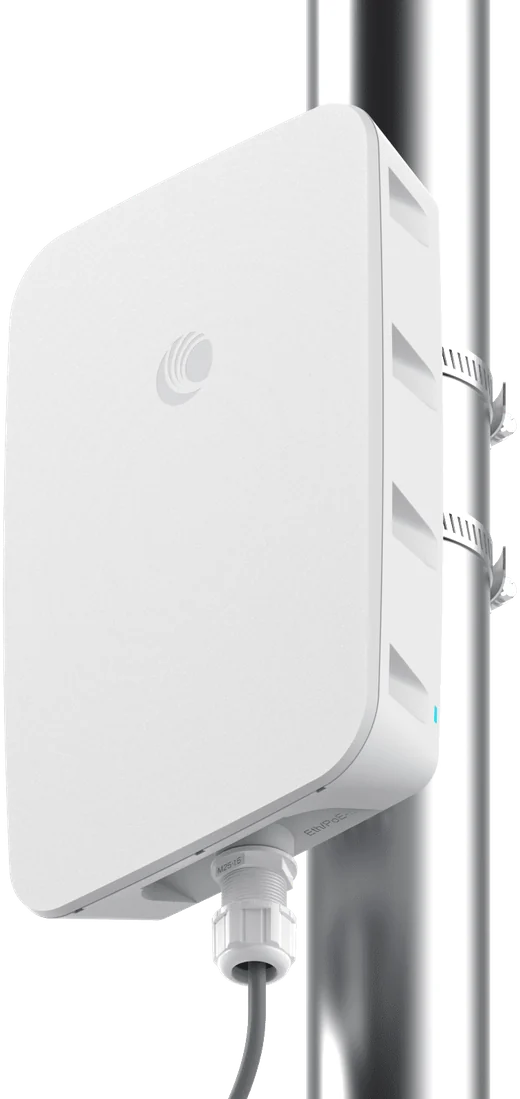

Cambium XV2-23T outdoor access point strapped to a metal pole, its cable running out of the underside.

IP67Outdoor rated enclosure

Wi-Fi 6OutdoorIP67

XV2-23T Wi-Fi 6 outdoor access point

A value tier outdoor Wi-Fi 6 access point from Cambium Networks, designed for a cost effective upgrade to the latest 802.11ax standard.

  • Dual radio Wi-Fi 6
  • 5 GHz (2x2), 2.4 GHz (2x2)
  • One 1 GbE uplink
  • Outdoor rated IP67 enclosure
  • Managed by cnMaestro or Swift
Enquire about the XV2-23T

The four side by side

Only what DW WiFi publishes for each model. If something you need is not listed, ask us.

XE3-4Wi-Fi 6E indoor XV2-2XWi-Fi 6 indoor XV2-21XWi-Fi 6 indoor XV2-23TWi-Fi 6 outdoor
Wi-Fi standard Wi-Fi 6/6EWi-Fi 6Wi-Fi 6 (802.11ax)Wi-Fi 6 (802.11ax)
Placement IndoorIndoorIndoorOutdoor
Radios Tri-radio, software-definedDual-radioDual radioDual radio
Streams 4x4/2x2Not listed2x2 + 2x22x2 + 2x2
Bands 2.4 / 5 / 6 GHzNot listed2.4 / 5 GHz2.4 / 5 GHz
Wired Not listedNot listed1 GbE RJ45One 1 GbE uplink
Enclosure Not listedNot listedNot listedOutdoor rated IP67
Management cnMaestro cloud, or on premisesCloud managedcnMaestro and/or SwiftcnMaestro or Swift
Licensing costs NoneNoneNoneNone
Warranty Not listedLimited lifetimeLimited lifetimeNot listed
Made for Future-proof, next generation networksEdge services at a value-based priceA high performance to price ratioA cost effective outdoor upgrade to 802.11ax

Swipe the table sideways to see all four.

Why choose Cambium access points

Cambium access points are a seamless, reliable and advanced choice for wireless networking. This is what that means on a working site.

Find out what Cambium access points could do for the connectivity on your site. Tell us about it, or call Dave on 01952 432092.

Enquire about Cambium

  1. Performance for busy workplaces

    A strong, stable and speedy wireless connection, with the performance a busy workplace needs from every access point.

  2. Cutting-edge technology

    Cambium build the latest technology into their access points, so the network is fast today and future-proof as your devices change.

  3. Easy integration and scalability

    They integrate with your existing network infrastructure, whether you are a small start-up or a large enterprise, and the network scales as your needs grow.

  4. Enhanced security

    Robust protection against cyber threats keeps the network, and the data on it, private and secure.

  5. Exceptional support

    Cambium back their access points with comprehensive support, from initial setup to ongoing maintenance.

Find out what Cambium access points could do for the connectivity on your site. Tell us about it, or call Dave on 01952 432092.

Enquire about Cambium

Enquire about Cambium access points

Tell us which model you are interested in, or describe your site and we will recommend one. Your email app opens with everything filled in, addressed to sales@dw-wifi.com. Nothing is sent until you press send.

Not sure how many access points you need, or where they should go? Having a good survey before you buy can save you money.

See Wi-Fi site surveys

For example: the type of site, roughly how big it is, and whether you need indoor or outdoor coverage.
